The ATC Cartridge filter is available with an air-flow from 3200-2600 m3/h and comes standard with the automatic cartridge cleaning system using compressed air jets, dust blaster pro. the ATC can treat air containing high concentrations of chips and dust whilst maintaining externally high capture efficiency, even for particles smaller than 1 micron.
Standard

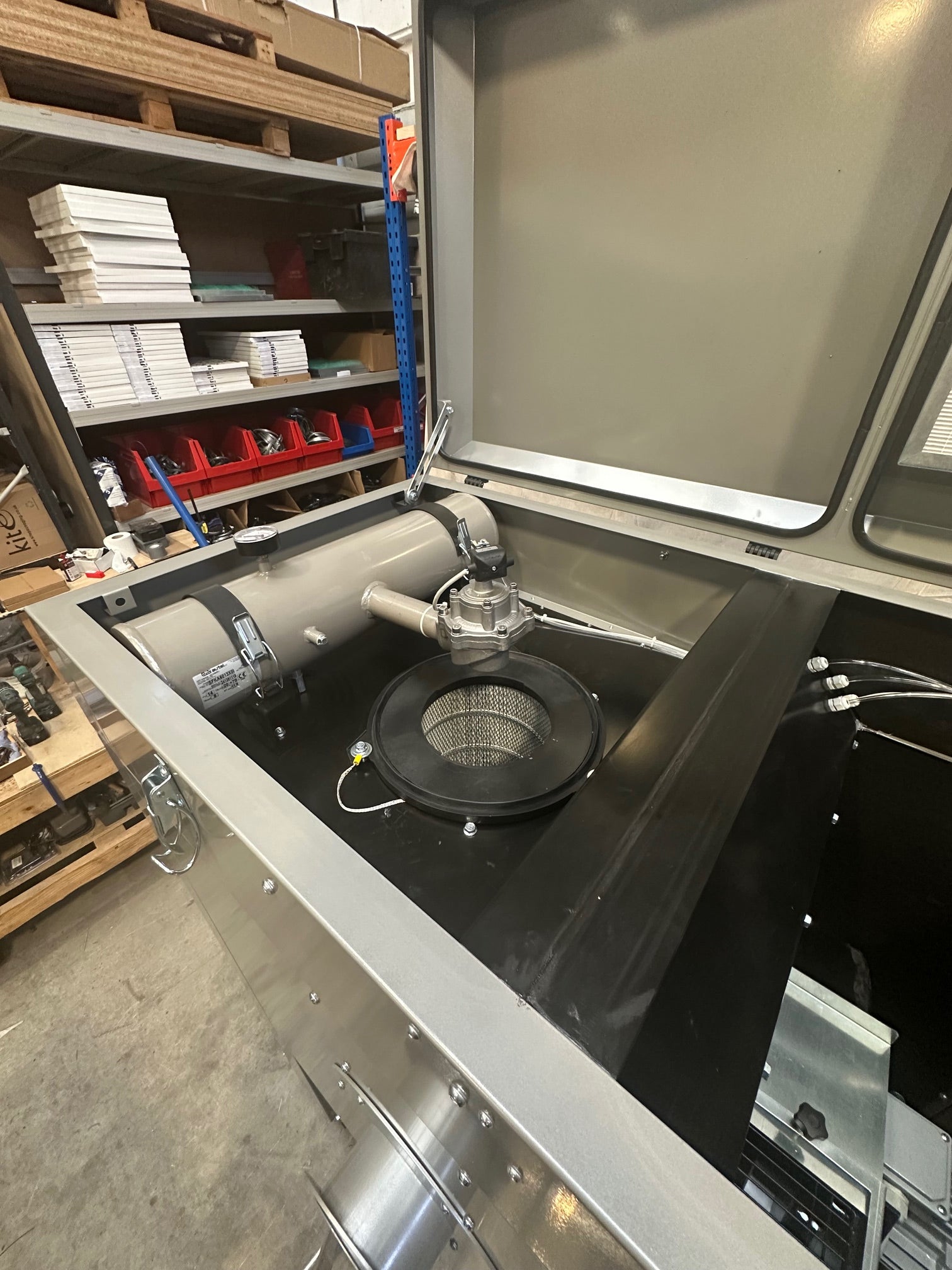

- Automatic cartridge cleaning with compressed air jets and timer
- quick release dust collection container
- settling chamber

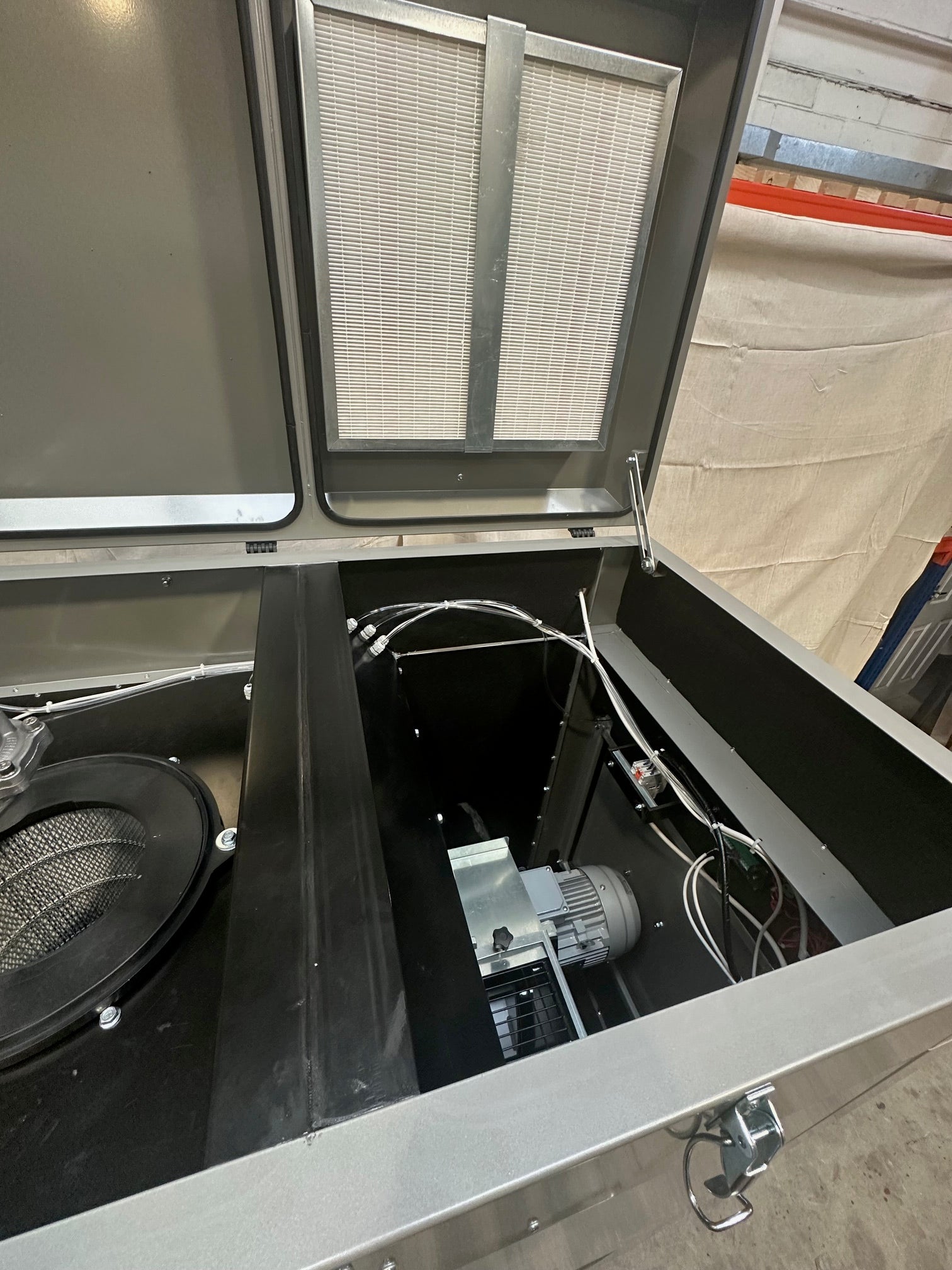

- integrated fan with soundproofing

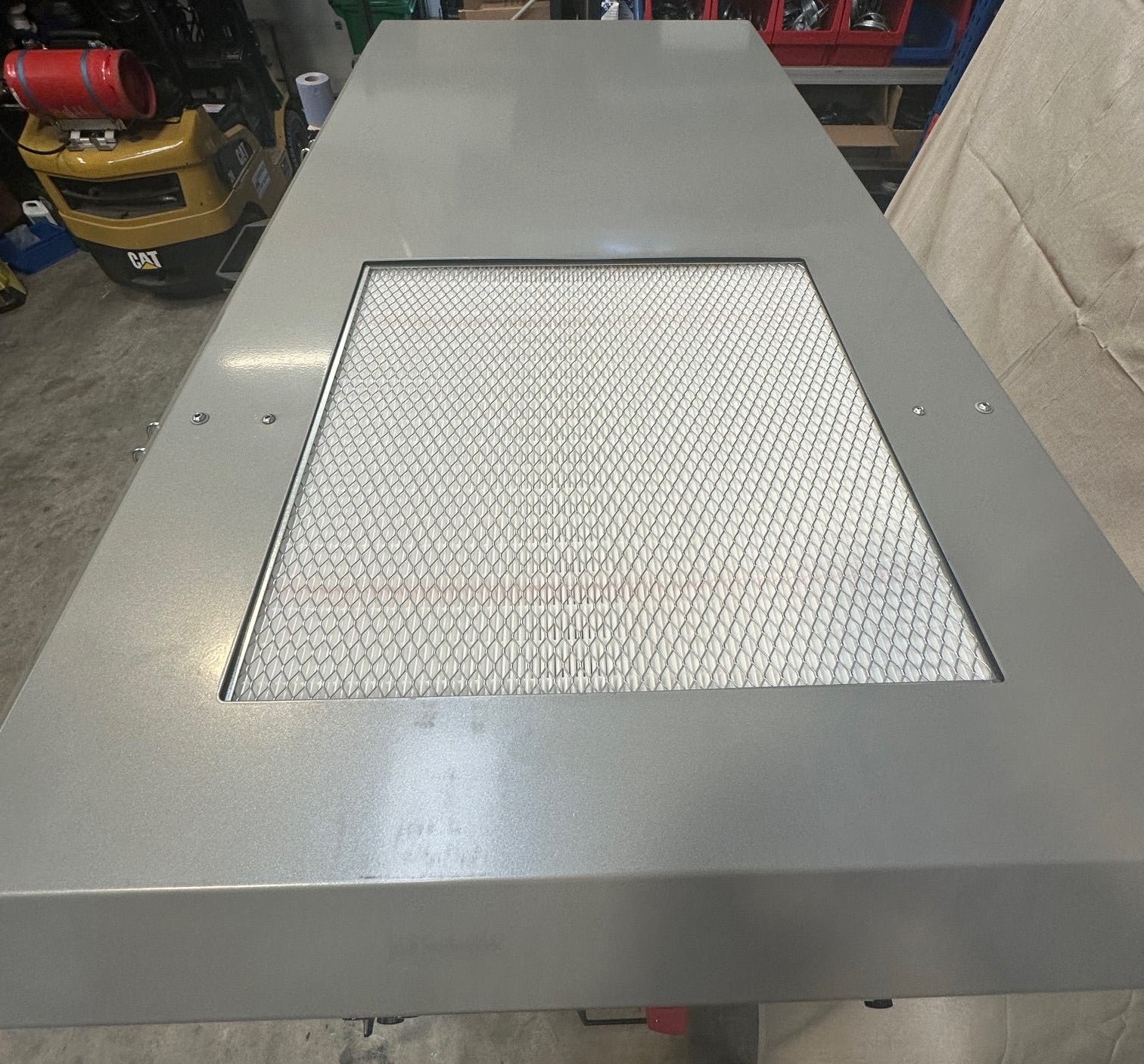

- synthetic outlet filter class F7
- Visual inspection window

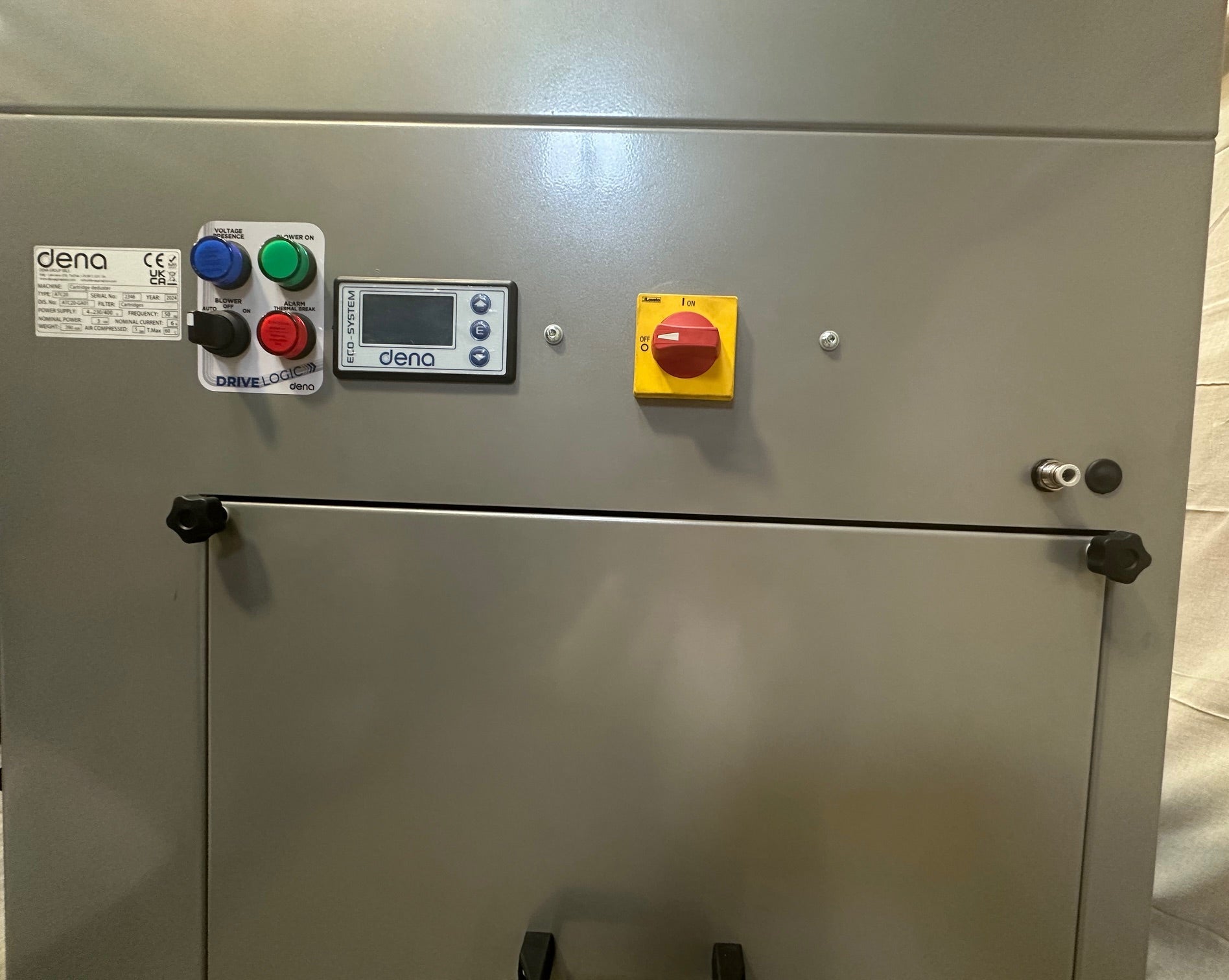

- control panel
Technical Specification
- Cartridges: 1
- R.P.M: 2900
- Max tank pressure (Bar): 400v -50Hz
- Fan Power: 3 Kw
- Filtering surface: 20m2
- Cartridge dimensions: 325xH1000mm
- Filtering Media: Polyester
- Airflow: 2000m3/h
- Noise Level: 78dB
- Bin Capacity: 330lt
- Weight: 390kg
