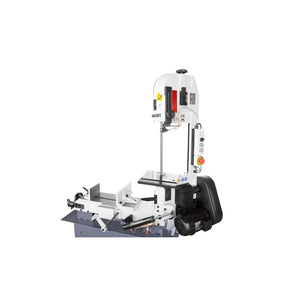

CORMAK BS 712 N 400V band saw
CORMAK BS 712 N 400V band saw
CORMAK BS 712 N 400V band saw
CORMAK BS 712 N 400V band saw
CORMAK BS 712 N 400V band saw

CORMAK BS 712 N 400V band saw

Regular price
Sold out
Sale price
£0.00
VAT included
Quantity must be 1 or more

Universal, very strong and efficient metal band saw with a swivel vice up to 45 °. The perfect solution for locksmith and craft workshops.

Product characteristics

The cut element can be fed manually or through any feeding device. The feed during cutting takes place by gravity on the principle of oil flow in a two-chamber hydraulic cylinder. The desired linear speed of the belt is achieved by changing the gear ratio on the pulleys between the worm gear and the drive motor. The appropriate speed of the arm drop is obtained thanks to the valve regulating the oil flow between the chambers. The arm made of profiled nodular cast iron ensures rigidity during operation and absorbs all kinds of vibrations. The control panel is located next to the worm gear. The cutting band drive system consists of two cast iron wheels. The first is called the winding wheel (the adjustment is made via a lever), the second is the drive wheel. The torque is transmitted directly to the drive wheel from the worm gear, while the worm gear is driven by an electric motor. The appropriate belt inclination angle is given by a set of bearing rollers. The basis of the machine is a rigid cuboid made of steel sheets, inside which there is a coolant reservoir with a coolant pump. Thanks to the torsional vice, we can cut the material at an angle of 0-45 degrees. To the upper part of the machine's base there is a coolant drainage basin and a reservoir of chips generated during cutting the material. A cast-iron work table is mounted on the bathtub, on which there is a vice that holds the material and to which the cutter's arm is attached. There are holes for the wheel axis at the bottom of the machine pedestal. Safety during the cutting process is ensured by the electrical installation that meets all CE requirements. The machine has a limit switch that stops the machine after finishing the cutting process, an emergency switch, the so-called safety mushroom, a series of microswitches that turn off the machine when, for example, we open the belt transmission cover or the cutting band cover. In addition, our model of the machine, unlike the competition, is equipped with a wire brush that cleans the saw blade from chips - this prevents the blade from clogging and gives more effective cutting. we open the belt transmission cover or the cutting band cover. In addition, our model of the machine, unlike the competition, is equipped with a wire brush that cleans the saw blade from chips - this prevents the blade from clogging and gives more effective cutting. we open the belt transmission cover or the cutting band cover. In addition, our model of the machine, unlike the competition, is equipped with a wire brush that cleans the saw blade from chips - this prevents the blade from clogging and gives more effective cutting.



Technical data

Cutting band size [mm] 2360 x 20 x 0.9
Belt tension mechanical (manual)
Belt speeds [m / min] 22, 34, 36, 72
Feed speed [m / min] 0-50 (feed step less)
Arm drop adjustment step less - hydraulic cylinder
Height of the vice base [mm] 600
Power 3 phase 400V
Main engine power [kW] S1 100%: 0.75; S6 40%: 1.1 kW
Weight [kg] 227
Machine dimensions 1200x400x1000 mm
Warranty [months] 12/24
Manual (DTR) Polish language
CE declaration Yes
Corner
0 ° 180 mm 300 x 180 mm 180 x 180 mm
45 ° 130 mm 120 x 125 mm 125 x 125 mm
