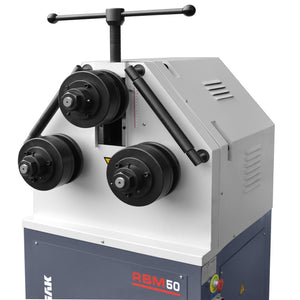

Electric bending machine for bending pipes and profiles, bars and flat bars depending on the rollers used - bending stones. The machine is additionally equipped with a mechanical clamp on the upper roller with a Vernier. The perfect solution for bending arches, circles, spirals etc. Very high dead weight ensures optimal stability during work. The set includes a foot pedal to control the left / right drive. Used in locksmith shops and construction sites. Maximum pipe bending range up to 70 mm.
Characteristics of the machine
- The bending radius can be set by means of a pressure device with a Vernier scale on the top
- Application: bending profiles and pipes
- The possibility of bending various profiles thanks to universal rollers
- Very high tare weight for optimal stability
- Grinded and hardened guide rollers on the sides
- Bending rollers made of durable and hardened steel
- Operation with a foot pedal
- Left / right work
Standard equipment
- side guide rollers
- foot pedal /
- various sets of rollers
- DTR in Polish
- CE declaration
Technical Specification
| Round pipe [mm] | Ø 70 x 2 |
| Rectangular profile [mm] | Ø 60 x 60 x 3 |
| Round bar [mm] | Ø35 |
| Full rectangular element [mm] | Ø 35 x 35 |
| Roller diameter [mm] | 50 |
| Engine power [kW] | S1 1.5 / S6 2.2 |
| Power | 3 Phase 400V |
| Dimensions (L x W x H) | 900 x 850 x 1700 |
| Weight [kg] | 450 |
