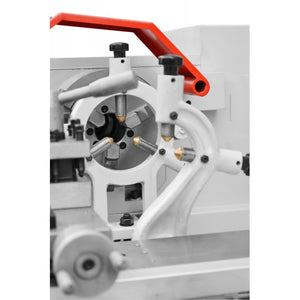

CORMAK TORNADO 360 universal lathe
CORMAK TORNADO 360 universal lathe
CORMAK TORNADO 360 universal lathe
CORMAK TORNADO 360 universal lathe

CORMAK TORNADO 360 universal lathe

Regular price
Sold out
Sale price
£0.00
VAT included
Quantity must be 1 or more

CORMAK 360 metal lathes are a new improved version of the popular metalworking lathes. Among other things, the tool holder cover, spindle bearing system, new digital readout, are suitable for production plants, workshops and tool shops. They are ideal for unit and small lot production.

  • REINFORCED, RIBBED SURFACE OF THE LATHE'S BED PROVIDES MAXIMUM REDUCTION OF VIBRATION, ADDITIONALLY PRECISE GRINDED, HARDENED BED
  • DIGITAL READOUT OF THE AXIS IN STANDARD EQUIPMENT
  • FOR OPTIMUM RESULTS, ENSURED BY A LARGE SPINDLE BORE OF 52 mm
  • THE APPROPRIATE WIDTH OF THE BED ENSURES STABLE AND PRECISE WORKING CONDITIONS
  • MACHINE EQUIPPED WITH HIGH-QUALITY AND HIGH-END SPINDLE BEARING SYSTEM
  • EFFICIENT MACHINING THANKS TO TWO AUTOMATIC FEEDS AND EQUIPMENT WITH A ROLLER AND A DRAFT BOLT
  • HARDENED WHEELS IN THE SPINDLE GEAR
  • ADJUSTABLE OVERLOAD CLUTCH ON PULL SHAFT
  • POSSIBILITY TO MACHINE THE FULL RANGE OF THREADS WITHOUT REPLACING THE WHEELS IN THE GUITAR
  • FEED CHOICE LOCK: THROUGH A SCREW OR A ROLLER
  • THE REMOVABLE BRIDGE ENABLES THE WORKING OF ELEMENTS WITH AN INCREASED DIAMETER
  • RETRACTABLE CHIP DRAWER AND TOOL DRAWERS FOR BETTER AND EFFICIENT WORK

Technical Specifications

MAXIMUM TURNING DIAMETER

360 mm

MAXIMUM TURNING DIAMETER OVER THE BED

220 mm

MAXIMUM TURNING DIAMETER IN THE SELECTED BRIDGE

490 mm

MAXIMUM ROLLING LENGTH IN THE CHOICE OF THE BRIDGE

168 mm

TURNING LENGTH IN FIXED FISHES

970 mm

BED WIDTH

187 mm

SPINDLE END

D1-4

SPINDLE BORE

52 mm

SPINDLE ROTATION RANGE

90-2000 rpm

SPINDLE SPEED NUMBER

8 ranges

RANGE OF LONGITUDINAL FEED

0.055 - 1.291 mm / rev

RANGE OF TRANSVERSE FEED

0.014-0.345 mm / rev

THE MAXIMUM DIMENSION OF THE TOOL

16 mm x 16 mm

METRIC THREAD

0.4-7 mm

INCH THREAD

4-60 TPI

PIPE BUSH DIAMETER

32 mm

SLEEVE END OF THE HORSE

MT3

ENGINE POWER

1.5 kW

PUMP POWER

0.1 kW

WEIGHT

570 kg

DIMENSIONS

1890x720x1500 mm
